Marvel Manufacturing

Welding Squares - Notched DXF Files

Welding Squares - Notched DXF Files

Regular price $4.00 USD
Regular price Sale price $4.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

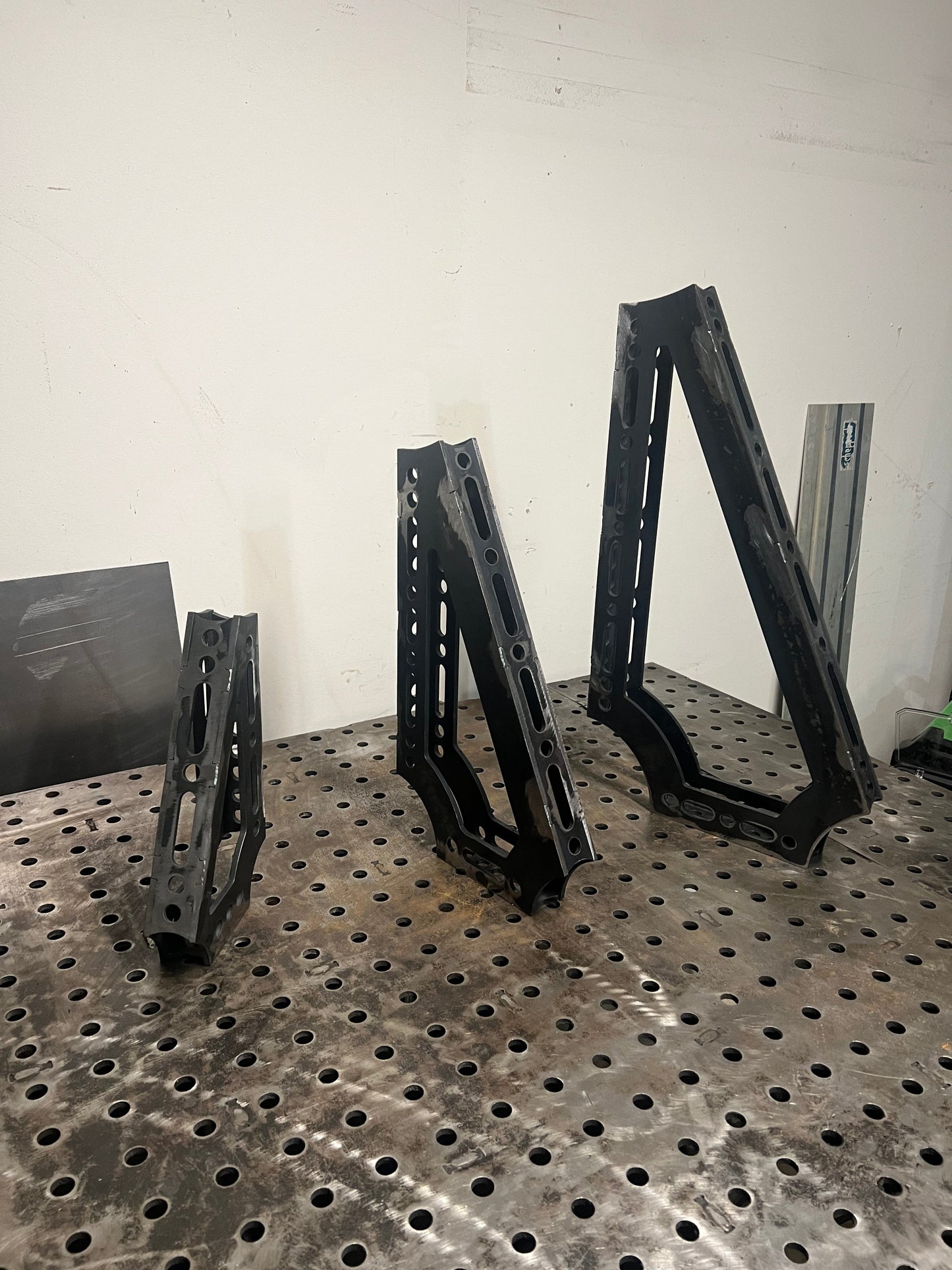

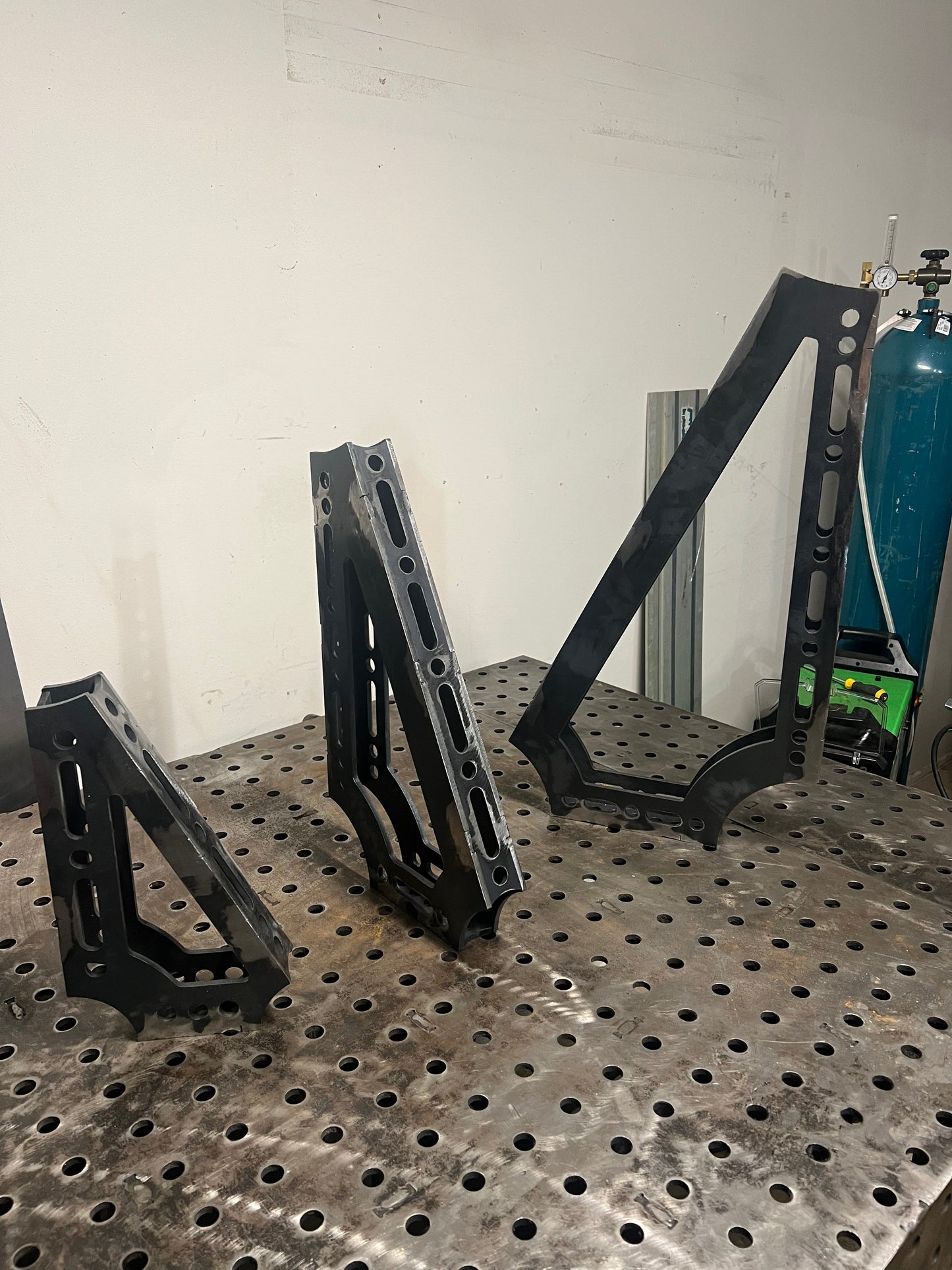

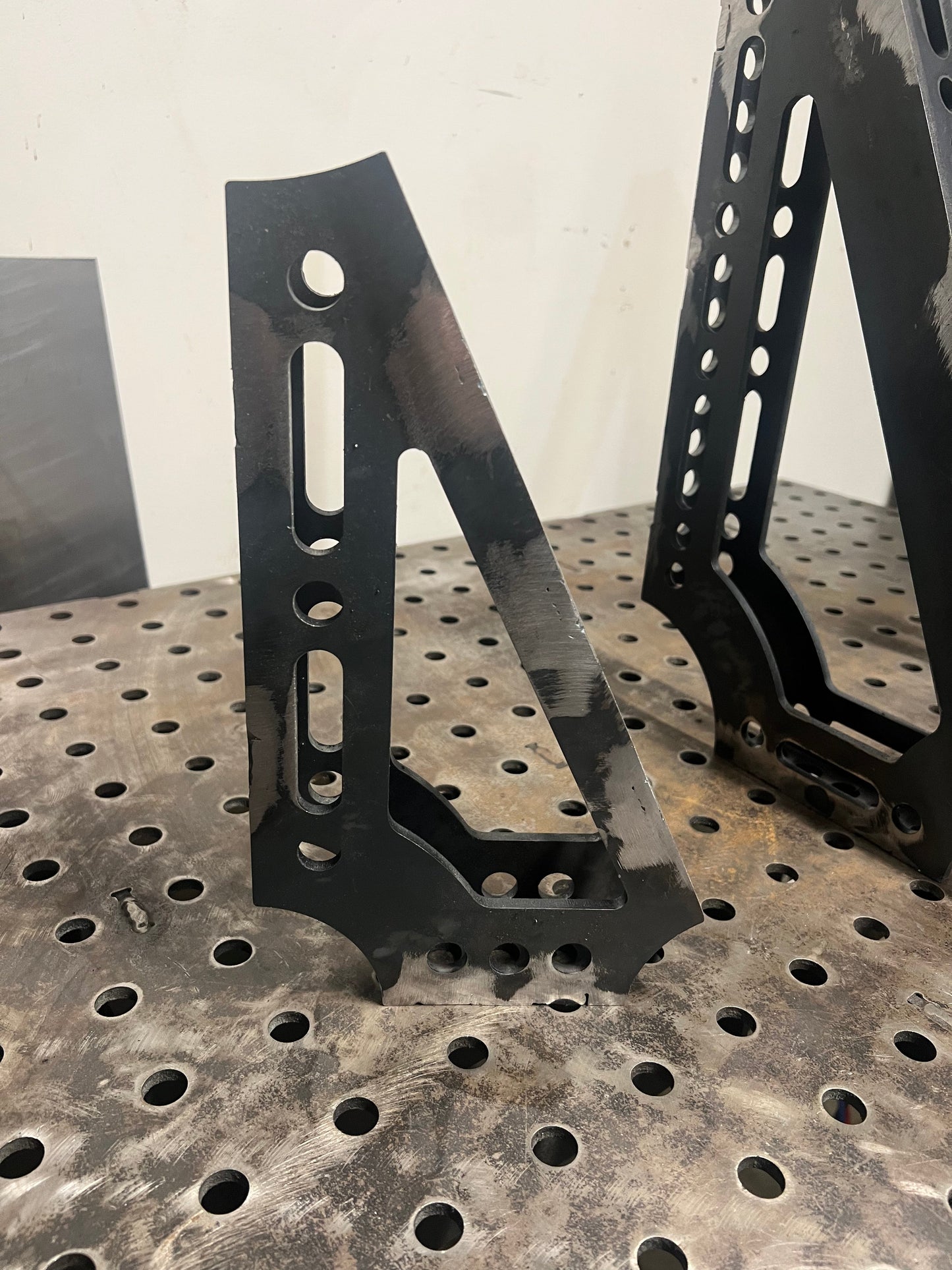

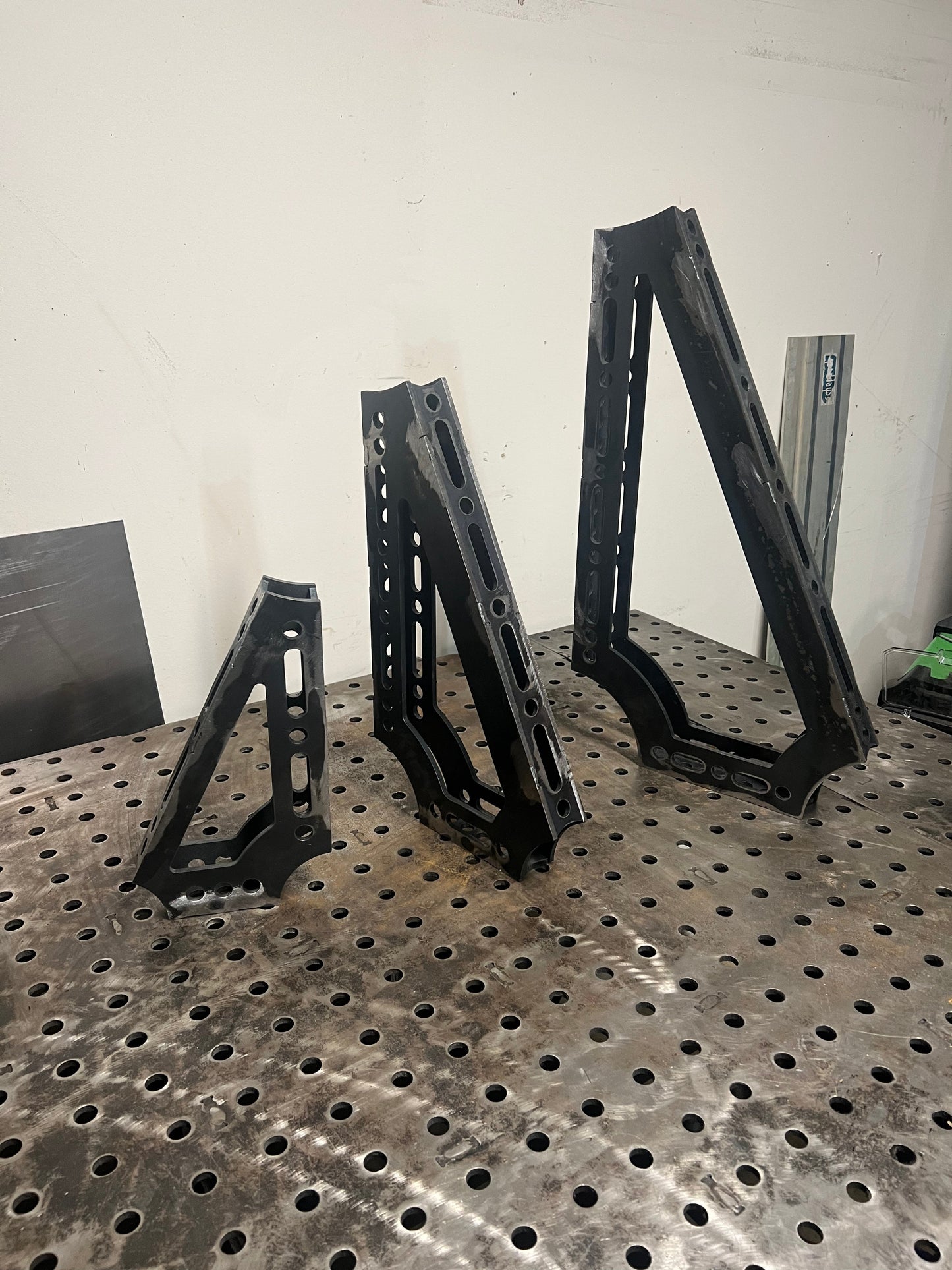

The notch in the fab squares allows torch access to the internal corner and gives you the ability to square off tube.

16mm holes with slots, 25mm and 50mm spacing.

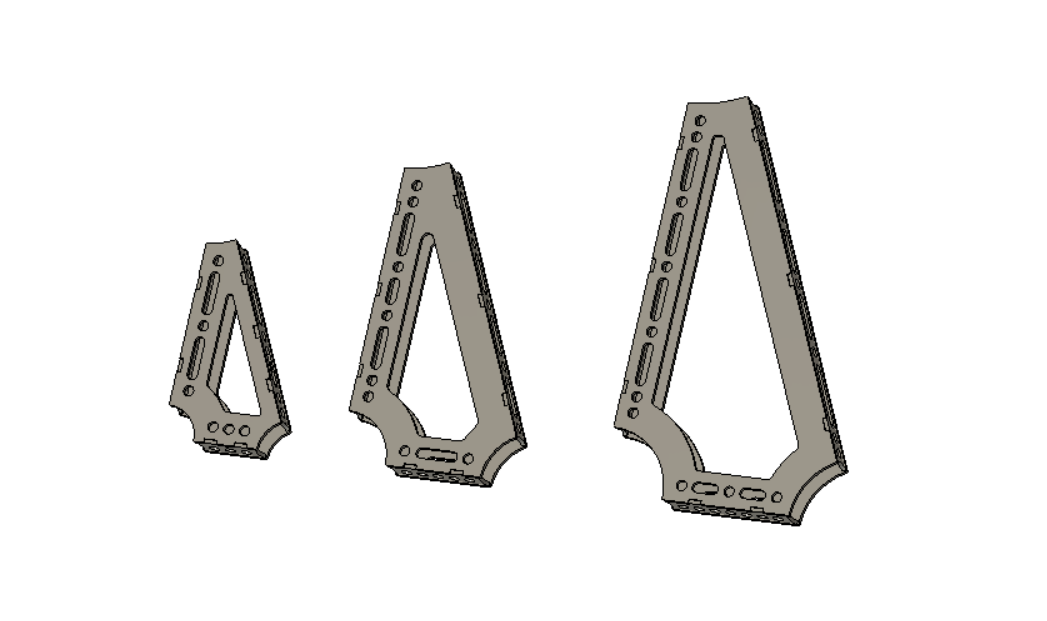

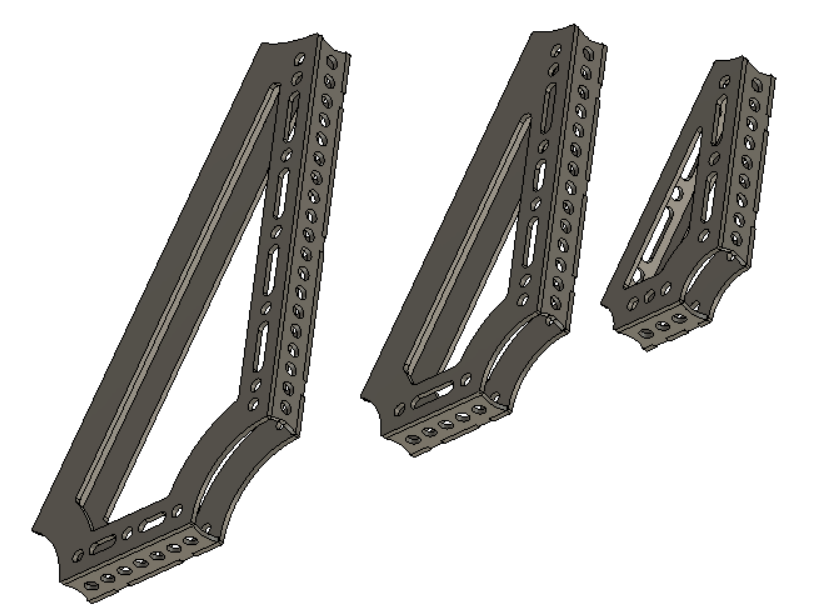

3 sizes available

- 300 x 200 x 50mm (small)

- 400 x 300 x 50mm (medium)

- 600 x 400 x 50mm (the big boy)

6mm material thickness

DXF files come in AutoCad 2004 format with dimensions

DXF files will be emailed within 24hrs. You are buying the files only no parts included
