Marvel Manufacturing

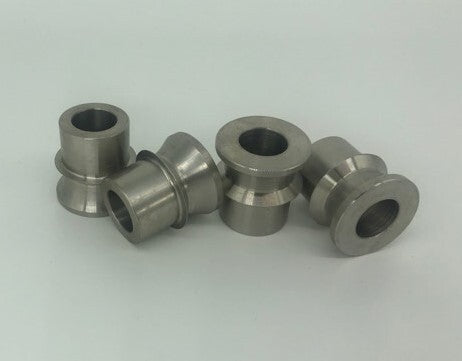

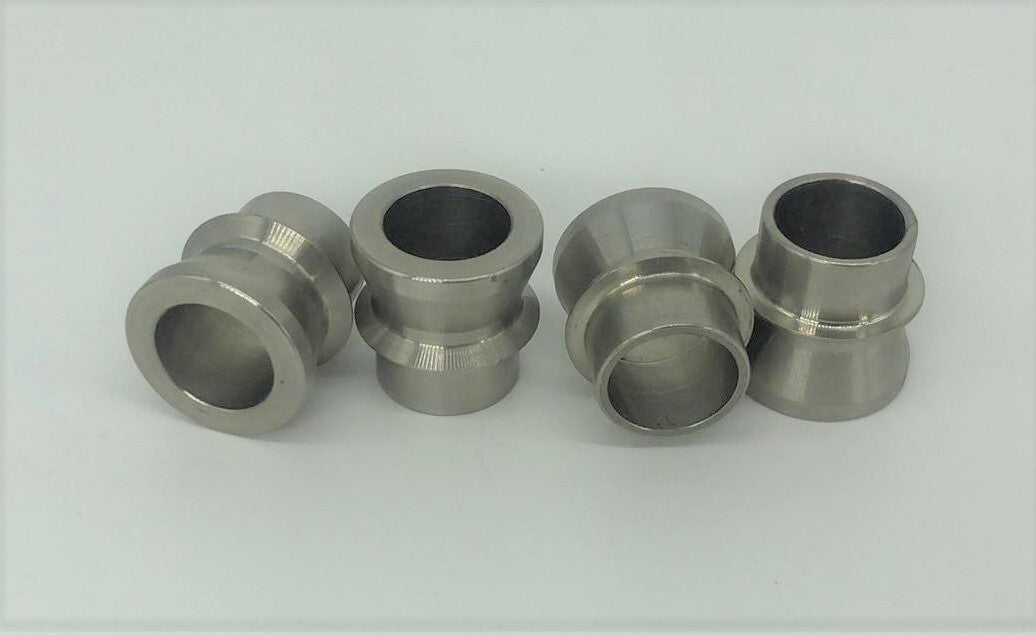

DFI Misalignment Spacers

DFI Misalignment Spacers

Regular price $6.00 USD
Regular price Sale price $6.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
To suit

DFI Misalignment spacers are sold individually, (1 heim requires 2 spacers)

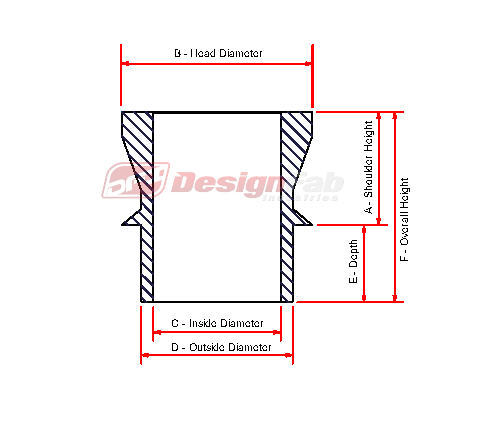

To suit 7/8” or 3/4" heim - Patrol spacing/bolt

A) 20mm

B) 24mm

C) Reduces To, 14mm

D) 3/4" Bore

E) 9.5mm
F) 29mm



To suit 1.25” heim - Patrol spacing/bolt

A) 16mm - 5/8

B) 32mm

C) Reduces To, 14mm

D) 1" Bore
E) 17mm
F) 30mm
Total width including heim 60.5mm



To suit 3/4” or 7/8” heim

A) 14.5mm

B) 24mm

C) Reduces To, 16mm-5/8

D) 3/4" Bore
E) 9.5mm
F) 24mm
Total width including heim 50mm





To suit 1.25” heim

A) 16mm

B) 32mm

C) Reduces To, 19mm / 3/4

D) 1" Bore
E) 17mm
F) 33mm
Total width including heim 67mm
