Marvel Manufacturing

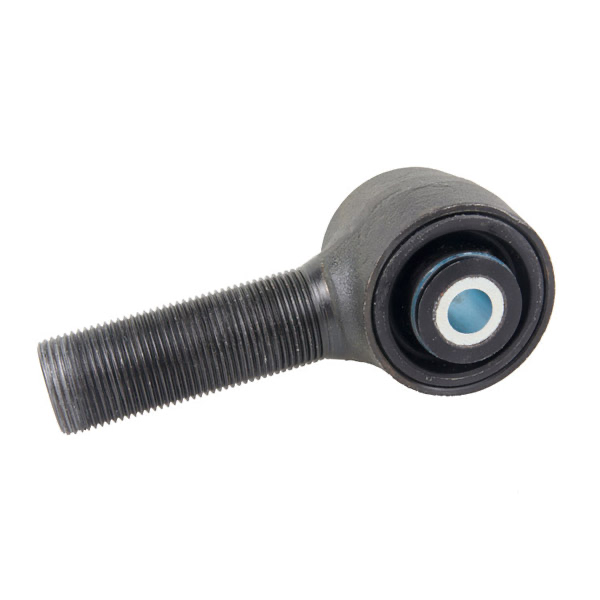

Synergy Dual Durometer Bushings (DDB) in Forged Housings

Synergy Dual Durometer Bushings (DDB) in Forged Housings

Regular price $80.00 AUD
Regular price Sale price $80.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Part number



Features:

  • Dual Durometer Bushings (DDB) feature a maintenance free, grease less design
  • Housings are forged from high strength 1045 steel and treated for corrosion resistance
  • Control arm bushings are self centering with 30 degrees of misalignment
  • Outer "soft" durometer acts as bushing cushion and flex material
  • Inner "hard" durometer lining acts as the bearing surface to allow free floating inner sleeve to rotate.
  • Provides for a maintenance free "zero bind" bushing
  • Internal bushing ring separates inner and outer materials to prevent inner sleeve gaping at extreme flex

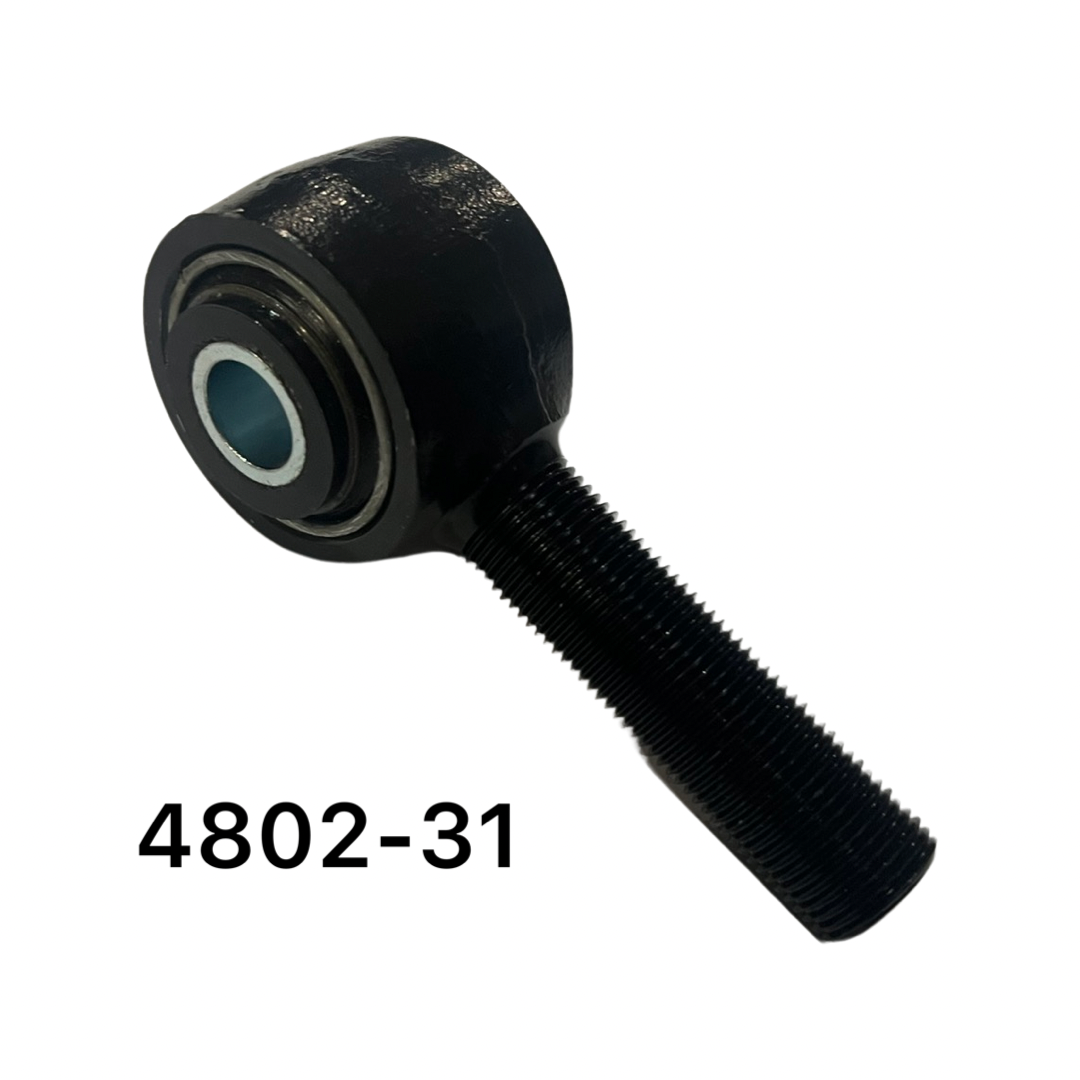

4802-31

41mm wide, 14mm bolt, 3/4” UNF LH thread

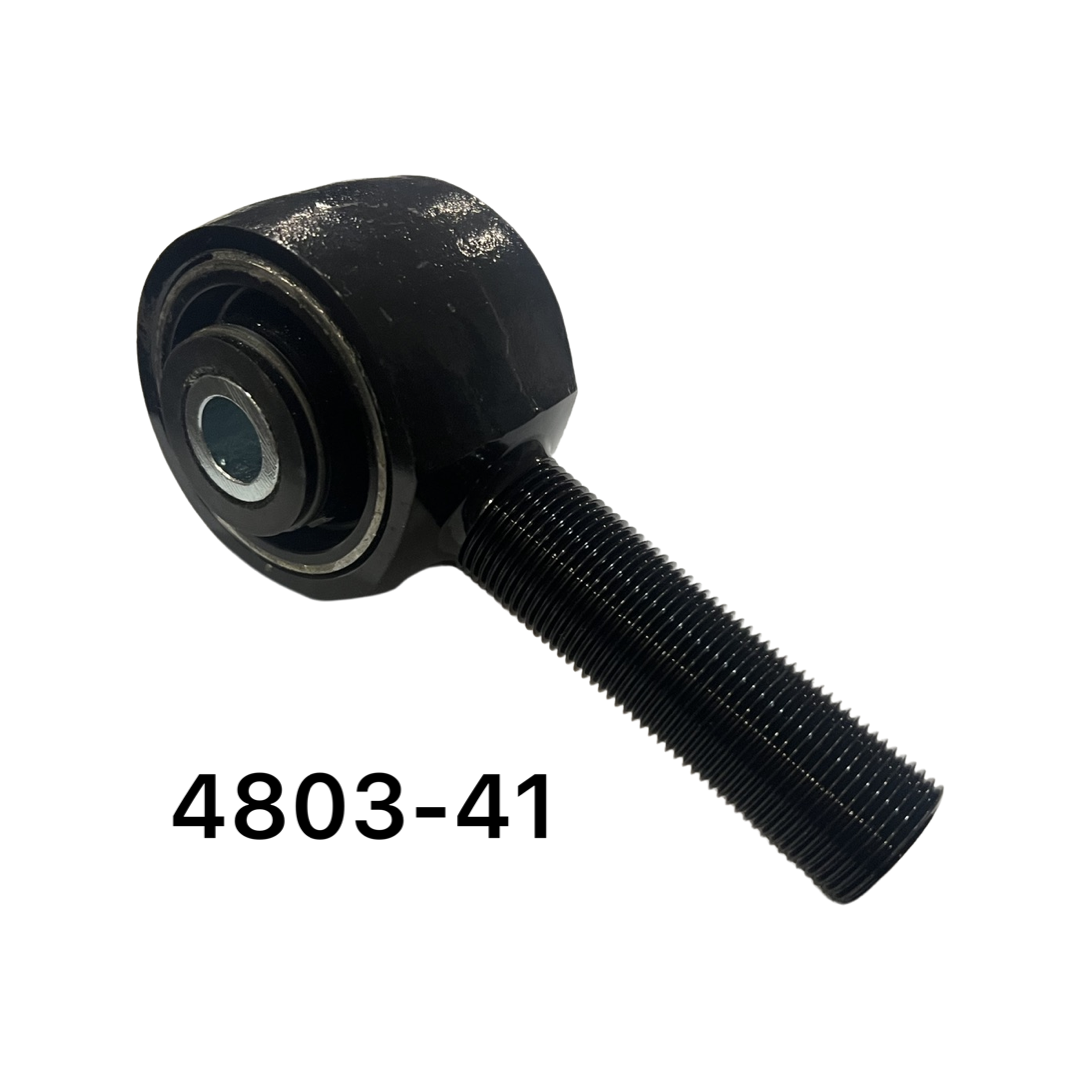

4803-41

41mm wide, 14mm bolt, 7/8 UNF LH thread

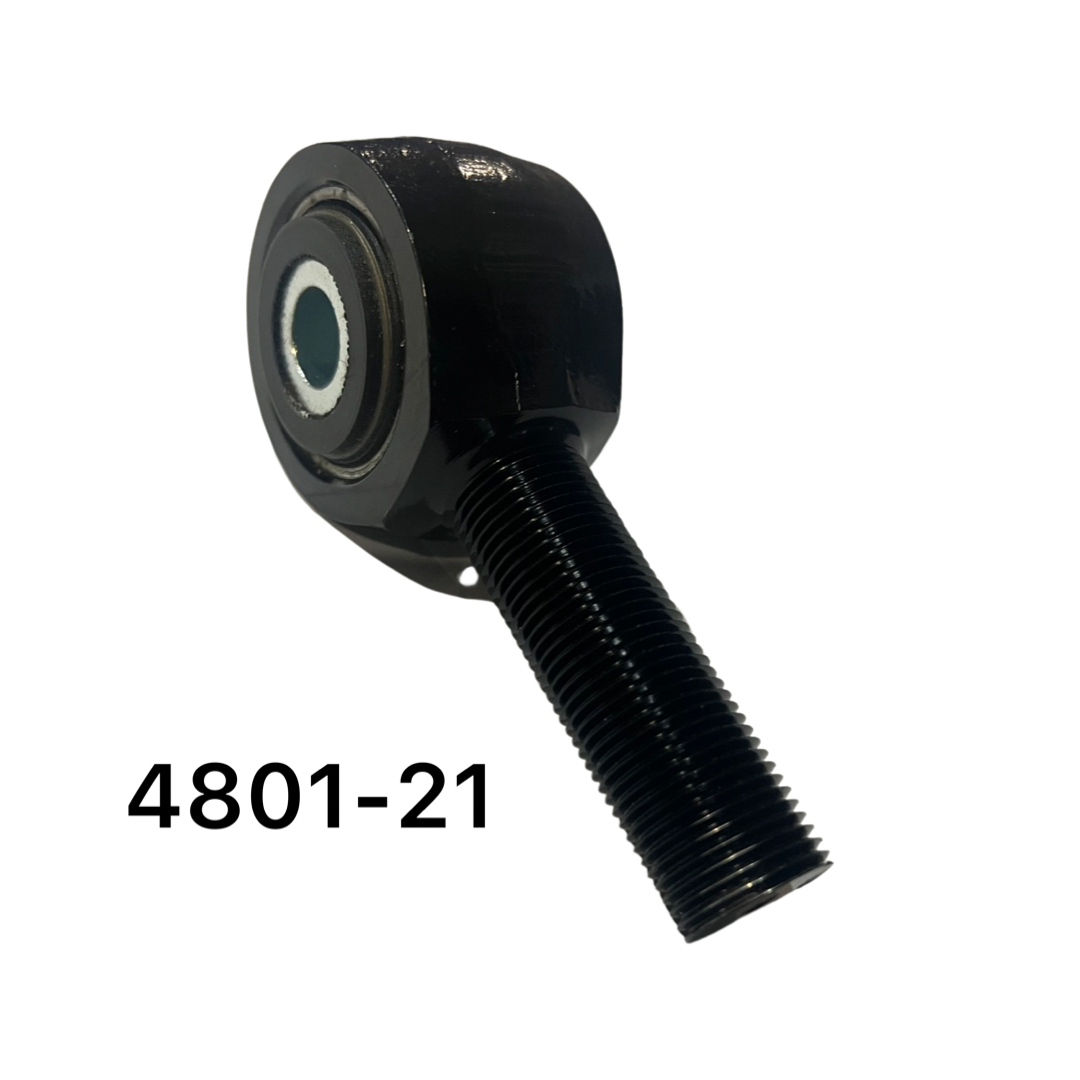

4801-21

59.5mm wide, 14mm bolt, 1” UNF LH thread (patrol spacing)

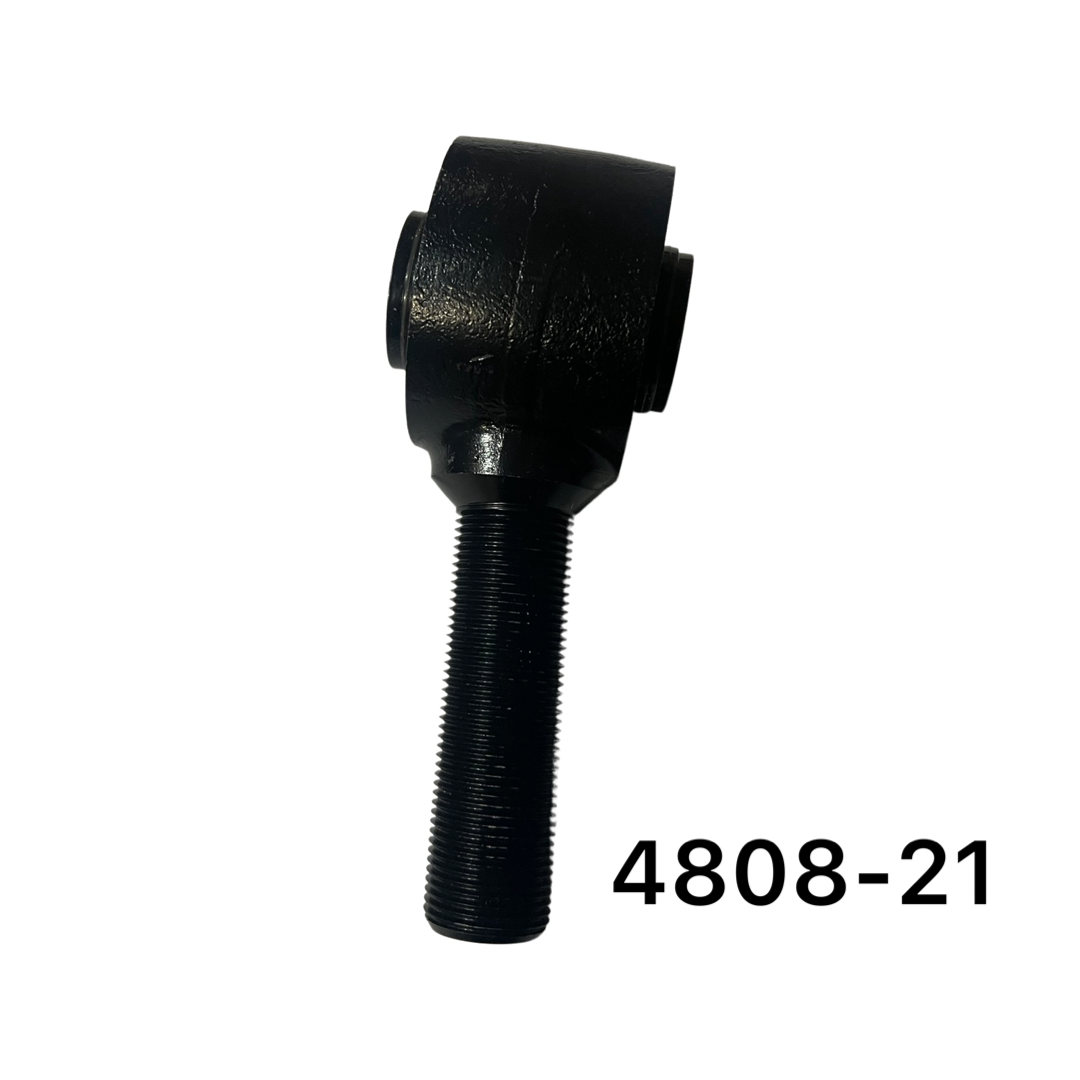

4808-21 (angled shank)

59.5mm wide, 14mm bolt, 1” UNF LH thread (patrol spacing)

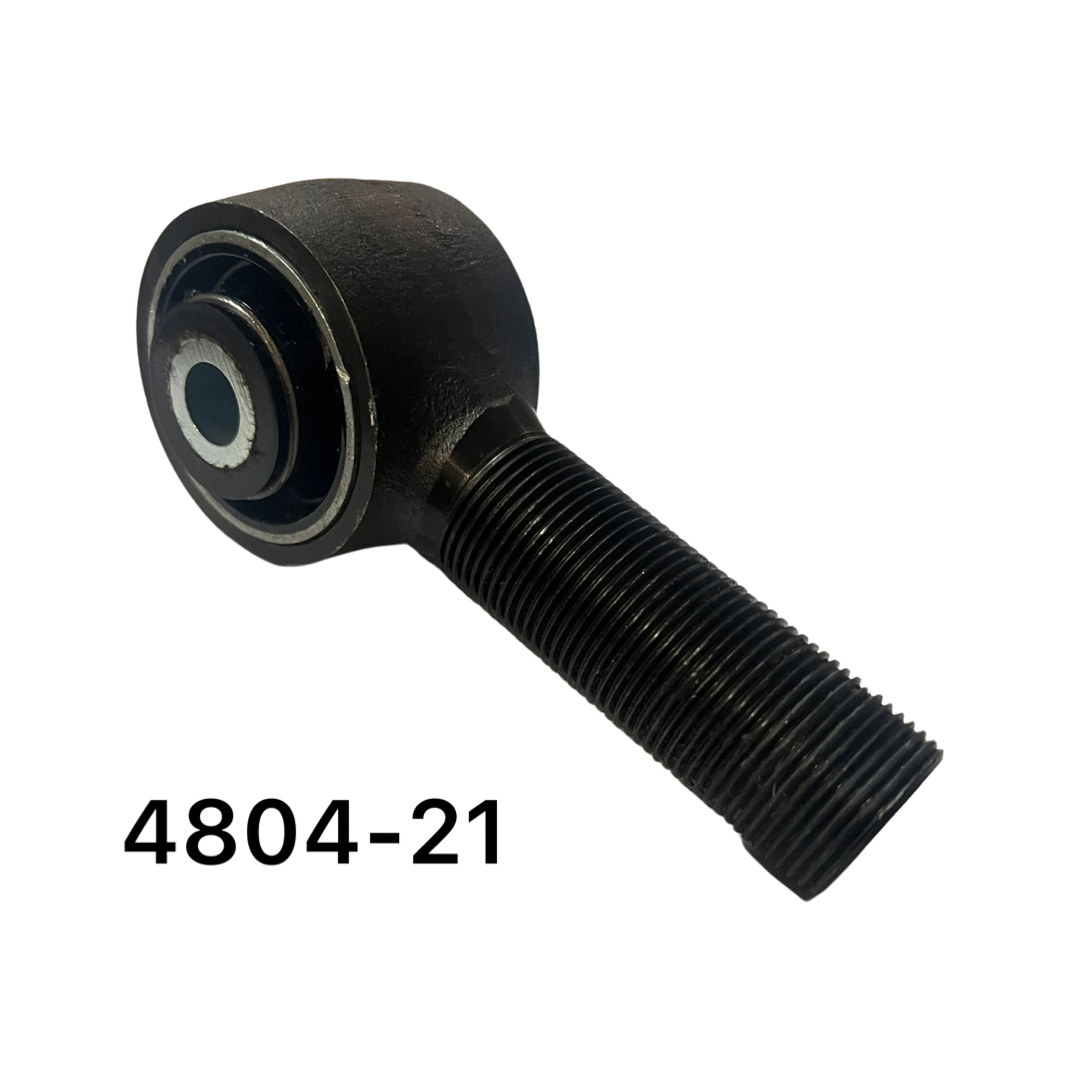

4804-21

59.5mm wide, 14mm bolt, 1.25” UNF LH thread (patrol spacing)



synergy shanked bushes do not come with jam nuts
